• Split Case Pump

    Single stage, Double suction, Axially split, Centrifugal pumps

  • Model & Features

    Overview

    The "S" series split case pump is a single-stage, non-self-priming, between bearing, centrifugal volute pump.

    The axially split design allows easy removal of the top casing and access to the pump components (bearings, wear rings, impeller, and shaft seal) without disturbing the motor or pipe work.



    The independent bearing housing allows for ease of maintenance without removing the top casing. The double volute design reduces the radial load on the shaft, extending component life, minimizing vibration and providing quiet operation.



    The "S" pump also offers high pump efficiencies throughout the range. High energy efficiency along with long pump life and easy maintenance add up to low life-cycle costs.



    The"S" pump is ideal for custom applications and is available in a wide range of variants. The high efficiency and low life cycle costs make the "S" ideal for any commercial building, water utility or industrial projects.



    The "S" pump is available with a liquid cooled sleeve bearing which promotes longer life and reduces maintenance.

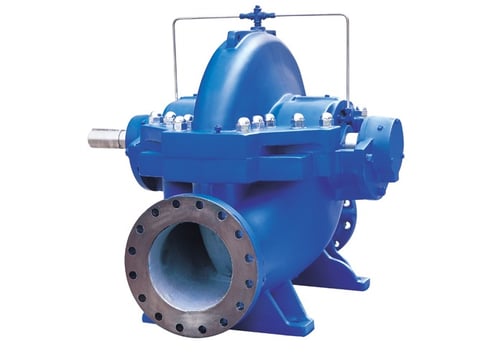

    XS series

    Main product of our company

    Flow: 50 - 20,000 m3/h

    Delivery Head: 7-220m

    Outlet Dia.: 80-1,600mm

    Working Pressure: ≤ 5Mpa

    Solid Particle: ≤ 80mg/L

    Liquid Temp.: 0℃-80℃

    XS(L) series

    Vertical installed Split case pump

    Flow: 50 - 20,000 m3/h

    Delivery Head: 7-220m

    Outlet Dia.: 80-1,600mm

    Working Pressure: ≤ 5Mpa

    Solid Particle: ≤ 80mg/L

    Liquid Temp.: 0℃-80℃

    MS series

    Innovated model based on S

    Flow: 70 - 22400 m3/h

    Delivery Head: 8-150m

    Outlet Dia.: 100-1,200mm

    Working Pressure: ≤ 4Mpa

    Solid Particle: ≤ 80mg/L

    Liquid Temp.: 0℃-80℃

    XS(R) series

    Split case pump for hot water

    Flow: 50 - 20,000 m3/h

    Delivery Head: 7-220m

    Outlet Dia.: 80-1,600mm

    Working Pressure: ≤ 5Mpa

    Solid Particle: ≤ 80mg/L

    Liquid Temp.: 0℃-200℃

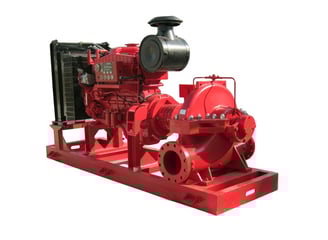

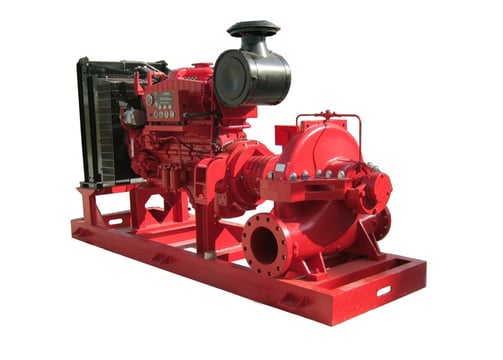

    XS(F) series

    Split case pump for fire fighting

    Flow: 500 - 5,000 gpm

    Delivery Head: 50-220m

    Outlet Dia.: 80-300mm

    Working Pressure: ≤ 3.5Mpa

    Solid Particle: ≤ 80mg/L

    Liquid Temp.: 0℃-60℃

    AS series

    3-5% efficincy Higher than other brands

    Flow: 50 - 25,000 m3/h

    Delivery Head: 7-250m

    Outlet Dia.: 80-1,000mm

    Working Pressure: ≤ 4Mpa

    Solid Particle: ≤ 80mg/L

    Liquid Temp.: 0℃-105℃

    GS series

    Superhigh Specific Speed Split case pump

    Flow: 315 - 16150 m3/h

    Delivery Head: 3.4-20.7m

    Outlet Dia.: 250-1200mm

    Working Pressure: ≤ 1Mpa

    Solid Particle: ≤ 80mg/L

    Liquid Temp.: -20℃-60℃

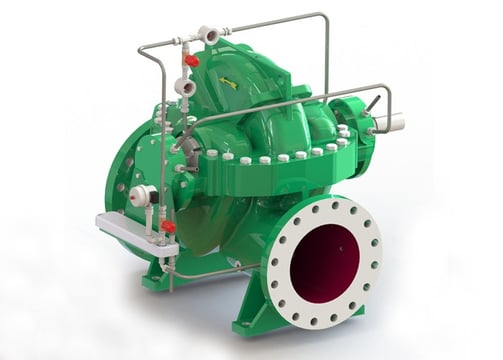

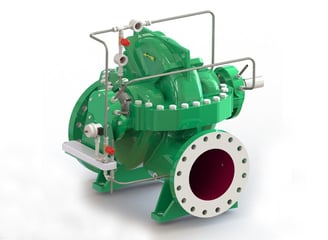

    APS series

    API610 Split case pump for petrochemical

    Flow: 20 - 7000 m3/h

    Delivery Head: 7-300m

    Outlet Dia.: 80-500mm

    Working Pressure: ≤ 5Mpa

    Solid Particle: ≤ 80mg/L

    Liquid Temp.: -200℃-400℃

    DK(DS)/SDS series

    Multistage Split case pump

    Flow: 25 - 1900 m3/h

    Delivery Head: 60-1100m

    Outlet Dia.: 50-500mm

    Working Pressure: ≤ 11Mpa

    Solid Particle: ≤ 80mg/L

    Liquid Temp.: -20℃-200℃
