• End Suction Pump

    Single stage, Single suction, End suction, Centrifugal pumps

  • Model & Features

    Overview

    The"I" series end suction pump is a single-stage, non-self-priming, Overhung, centrifugal pump.



    The "I" series end suction process pump is manufactured for a wide range of flow and head requirements. The "I" series pumps is engineered to lower your operating costs over time. Designed for endurance, it is possible to replace only the back-pullout assembly without having to remove the coupling and motor. Casings are extra thick, and shafts and bearings are heavy-duty, making the "I" series the ideal pump for the toughest of services.



    The "I" series pump is interchangeable with competitors’ pumps, making it possible to retrofit existing installations with quality M&W Pump products. All "I" series power ends are backed with M&W Pump’s two-year warranty.



    Customized material of main parts, varied material options & sealing systems make "I" series end suction pump an ideal choice for almost any application.



    Applications

    General resident & industry water supply & transferring
    Agricultural irrigation and drainage

    Water treatment, Waterworks, Sea water desalination

    Air-conditioning, Fire-fighting facilities

    Oil & Gas & Chemical processing, Abrasive liquids

    Power plant cooling tower & Hot water transferring

    Paper stock, Sugar & Syrups, Pharmaceutical

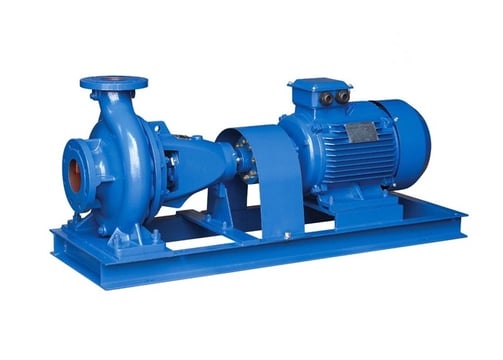

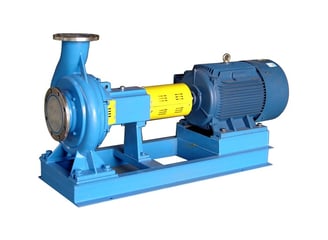

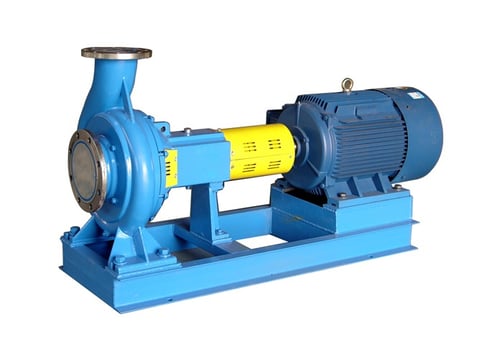

    IS series

    End suction pump for clean water

    Flow: 6 - 400 m3/h

    Delivery Head: 5 - 125m

    Outlet Dia.: 32 - 350mm

    Working Pressure: ≤ 1.5Mpa

    Solid Particle: ≤ 80mg/L

    Liquid Temp.: 0℃ - 80℃

    IR series

    End suction pump for hot water

    Flow: 6 - 400 m3/h

    Delivery Head: 5 - 125m

    Outlet Dia.: 32 - 350mm

    Working Pressure: ≤ 1.5Mpa

    Solid Particle: ≤ 80mg/L

    Liquid Temp.: 0℃- 150℃

    IY series

    End suction pump for oil without corrosive

    Flow: 6 - 400 m3/h

    Delivery Head: 5 - 125m

    Outlet Dia.: 32 - 350mm

    Working Pressure: ≤ 1.5Mpa

    Solid Particle: ≤ 80mg/L

    Liquid Temp.: -20℃- 250℃

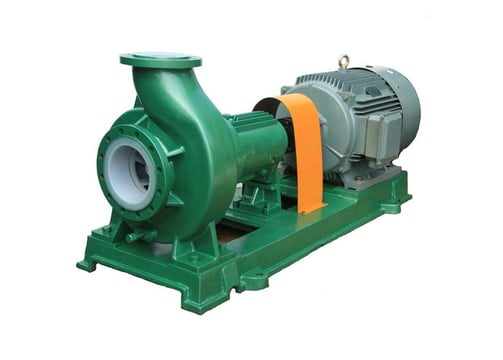

    IH series

    End suction pump for corrosive liquid

    Flow: 6 - 400 m3/h

    Delivery Head: 5 - 125m

    Outlet Dia.: 32 - 150mm

    Working Pressure: ≤ 1.5Mpa

    Solid Particle: ≤ 80mg/L

    Liquid Temp.: -20℃ - 105℃

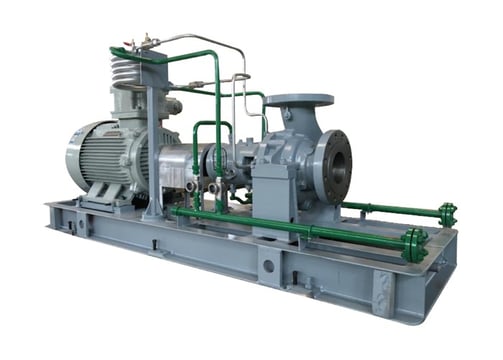

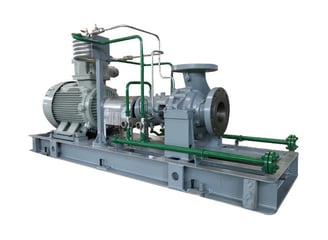

    ZA/ZE series

    API610 standard end suction pump

    Flow: 5 - 2600 m3/h

    Delivery Head: 16 -250m

    Outlet Dia.: 25 - 400mm

    Working Pressure: ≤ 2.5Mpa

    Solid Particle: ≤ 80mg/L

    Liquid Temp.: -80℃ - 300℃

    AY series

    API610 standard centrifugal oil pump

    Flow: 6 - 600 m3/h

    Delivery Head: 60 - 350m

    Outlet Dia.: 25 - 200mm

    Working Pressure: ≤ 5.5Mpa

    Solid Particle: ≤ 80mg/L

    Liquid Temp.: -45℃ - 400℃
