• Multistage Pump

    Multistage, Sectional, Centrifugal pumps

  • Model & Features

    Overview

    The M&W multistage series centrifugal pumpis manufactured for a wide range of flow and head requirements. These pumps are engineered to lower your operating costs over time. Designed for endurance and easy-maintenance. Casings are extra thick, and shafts and bearings are heavy-duty, making our multistage series the ideal pump for the toughest of services.



    Customized material of main parts, varied material options & sealing systems make our multistage series pump an ideal choice for almost any application.



    Applications

    General resident & industry water supply & transferring
    Agricultural irrigation and drainage

    Water treatment, Waterworks, Sea water desalination

    Air-conditioning, Fire-fighting facilities

    Oil & Gas & Chemical processing, Abrasive liquids

    Power plant cooling tower & Hot water transferring

    Mining, Boiler feeding, Sea water desalination

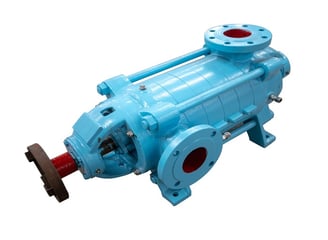

    D series

    Multistage Centrifugal Pump

    Flow: 7.5 - 840 m3/h

    Delivery Head: 19 - 816m

    Outlet Dia.: 40 - 300mm

    Working Pressure: ≤ 9Mpa

    Solid Particle: ≤ 80mg/L

    Liquid Temp.: 0℃- 105℃

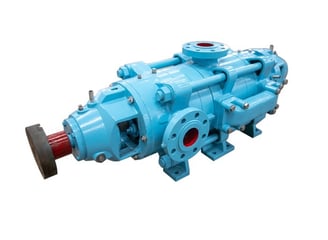

    DG series

    Multisage Boiler Feed Pump

    Flow: 36 - 580 m3/h

    Delivery Head: 19 - 816m

    Outlet Dia.: 40 - 300mm

    Working Pressure: ≤ 1.5Mpa

    Solid Particle: ≤ 80mg/L

    Liquid Temp.: 0℃- 160℃

    DL series

    Vertical Multistage Centrifugal Pump

    Flow: 5 - 280m3/h

    Delivery Head: 20 -200m

    Outlet Dia.: 40 - 150mm

    Working Pressure: ≤ 2.5Mpa

    Solid Particle: ≤ 80mg/L

    Liquid Temp.: 0℃ - 105℃

    LC series

    Multistage Vertical Turbine Pump

    Flow: 150 - 19,000 m3/h

    Delivery Head: 6 - 260m

    Outlet Dia.: 150 - 1400mm

    Working Pressure: ≤ 4Mpa

    Solid Particle: ≤ 80mg/L

    Liquid Temp.: 0℃ - 80℃

    DS/SDS series

    Multistage Split case pump

    Flow: 25 - 1900 m3/h

    Delivery Head: 60-1100m

    Outlet Dia.: 50-500mm

    Working Pressure: ≤ 11Mpa

    Solid Particle: ≤ 80mg/L

    Liquid Temp.: -20℃-200℃
