Split Case Pump

Split case pump XSR series (Hot Water)

Flow: 500 - 5,000 m3/h
Delivery Head: 60-220m
Outlet Dia.: 200-500mm
Liquid Temp.: 0℃-120℃
Product description: split case pump, split casing pump, double suction pump, double entry pump, axial split pump, hot water pump, circulation pump
INQUIRY

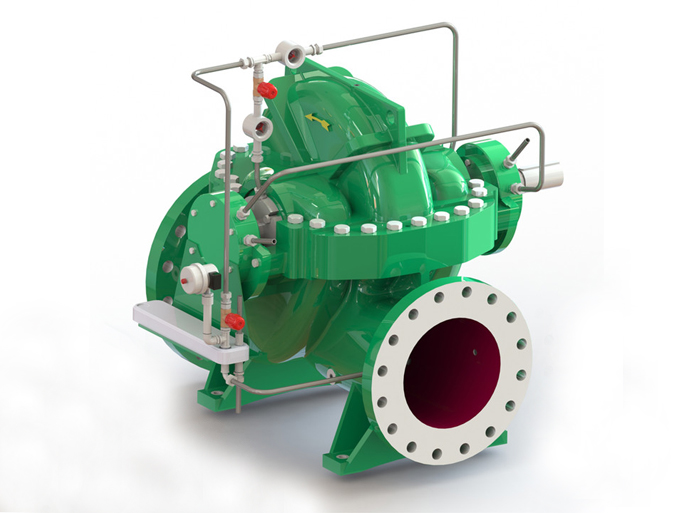

XSR series single stage double entry split case pump is specially designed for transferring circulation water in heat network of thermal power plant and similar circumstance.

The pump for municipal heat network will drive the water flow like a circle in the network. Circulation water which flow back from the municipal heat network will be boosted by the pump and heated by the heater, and then transferred return to the municipal heat network.

Main Performance Data

Flow: 500 - 5,000 m3/h

Delivery Head: 60-220m

Outlet Dia.: 200-500mm

Working Pressure: ≤ 4Mpa

Solid Particle: ≤ 80mg/L

Liquid Temp.: 0℃-120℃

Model Instruction
E.G.: XSR200-520 (A/B/C...)
XSR: Single stage double entry split case pump for hot water or similar liquid
200: Outlet diameter is 100mm
520: Rate impeller diameter is 310mm
A(B,C....): Impeller code

Applications

Heating network boosting
Hot water transferring,
Power station water circulation.

Main Parts Configuration
The pump could be applied to liquid with different temperature by customized wet parts, here followed our recommendation:

Parts Name	Hot Water
Pump Case	Ductile Iron / Cast Steel / S.S304
Shaft	40Cr / 35CrMo / 42CrMo/
Shaft Sleeve	2Cr13 / S.S304
Impeller	Ductile Iron / Cast Steel / S.S304
Wearing Ring	Ductile Iron / Cast Steel / S.S304
Bearing	China Make/NSK/SKF
Seals	Mechanical Seals
