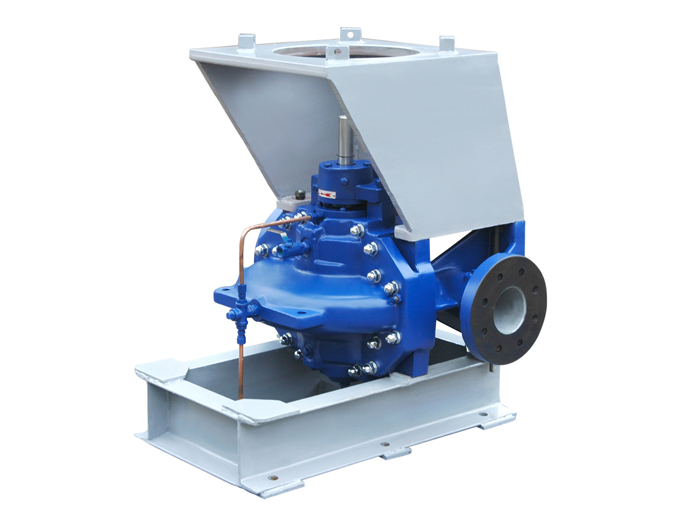

Split case pump XSL series (Vertical)

The XSL series vertical installed split case double suction centrifugal pump is a single impeller, double-entry centrifugal pump, which adopt KSB Omega/RDL/RDLO series hydraulic model. It have the features of wide range, high efficiency, stable performance, easy maintenance and long service life.

The axially split design allows easy removal of the top casing and access to the pump components (bearings, wear rings, impeller, and shaft seal) without disturbing the motor or pipe work. The independent bearing housing allows for ease of maintenance without removing the top casing. The double volute design reduces the radial load on the shaft, extending component life, minimizing vibration and providing quiet operation.

Main Performance Data
Flow: 50 - 20,000 m3/h
Delivery Head: 7-220m
Outlet Dia.: 80-1,600mm
Working Pressure: ≤ 5Mpa
Solid Particle: ≤ 80mg/L
Liquid Temp.: 0℃-80℃

Model Instruction
E.G.: XSL100-310 (A/B/C...)
XS: Vertical installed single stage double entry split case pump (Omega/RDL/RDLO model)
100:Outlet diameter is 100mm
310: Impeller diameter is 310mm
A(B,C....):  Impeller code

Applications
General industrial water supply and discharge,
Irrigation & Drainage,flood disposal,
Oil, gas & petrochemical liquid processing,
Hot water transferring, raw water intaking,
Sea water desalination & transferring,
Power station water circulation,
Factory & warehouse & residential fire fighting,
Mining water supply & drainage, Water treatment.

Main Parts Configuration
The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation:
