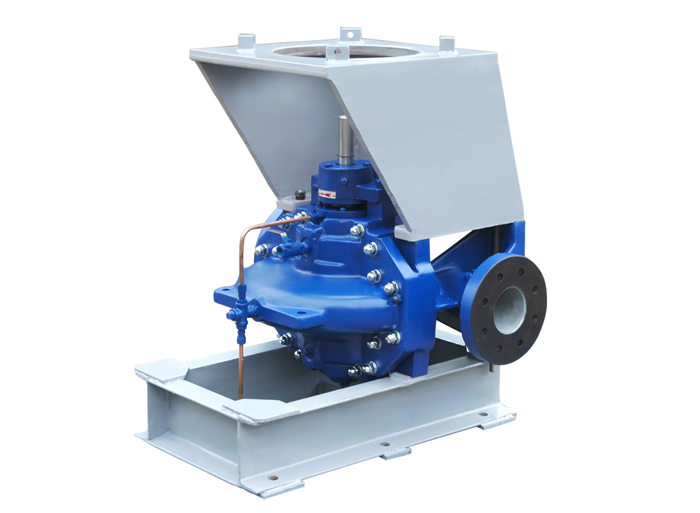

Split Case Pump
Split case pump XSF series (Fire Fighting)
- Flow: 500 - 5,000 gpm
- Delivery Head: 50-220m
- Outlet Dia.: 80-300mm
- Liquid Temp.: 0℃-60℃
- Product description: split case pump, split casing pump, double suction pump, double entry pump, fire pump, fire fighting pump
The XSF series Horizontal Split Case Fire Pumps are engineered for reliable operation upon demand. All fabricated parts are standardized and accurately machined for true alignment, increasing overall durability. Precision balancing of all rotating components provides mechanical dependability, reliable operation and minimal maintenance.
Main Performance Data
Model Instruction
E.G.: XSF100-310 (A/B/C...)
XSF: Single stage double entry split case fire pump (Omega/RDL/RDLO model)
100:Outlet diameter is 100mm
310: Impeller diameter is 310mm
A(B,C....): Impeller code
Applications
Industrial fire fighting system,
Residential fire fighting system,
Commercial fire fighting system,
Ware house fire fighting system,
Boat & Sea platform fire fighting.
Main Parts Configuration
The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation:
Impellers are constructed with double inlets that practically eliminated end thrust while boosting operating efficiency.
The simple, split case design of these pumps allows for in-line service without disturbing piping while ensuring long, efficient unit life, reduced maintenace costs and minimal power consumption. Whether your fire pump application requires an electric motor, a diesel engine or vertical or horizontal orientation, these industry-approved pumps can be configured to meet your specific needs.
These pumps are designed to operate with pressures from 5 Bar to 20 bar, even in excess of 22 bar and flows from 500 gpm to 5000 gpm.
Main Performance Data
Flow: 500 - 5,000 gpm
Delivery Head: 50-220m
Outlet Dia.: 80-300mm
Working Pressure: ≤ 3.5Mpa
Solid Particle: ≤ 80mg/L
Liquid Temp.: 0℃-60℃
Model Instruction
E.G.: XSF100-310 (A/B/C...)
XSF: Single stage double entry split case fire pump (Omega/RDL/RDLO model)
100:Outlet diameter is 100mm
310: Impeller diameter is 310mm
A(B,C....): Impeller code
Applications
Industrial fire fighting system,
Residential fire fighting system,
Commercial fire fighting system,
Ware house fire fighting system,
Boat & Sea platform fire fighting.
Main Parts Configuration
The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation:
| Parts Name | For Fire Fighting (Comply with NFPA20) |
| Pump Case | Ductile Iron |
| Shaft | 40Cr / 35CrMo / 42CrMo/S.S420 |
| Shaft Sleeve | S.S304 |
| Impeller | S.S304/Bronze |
| Wearing Ring | S.S304/Bronze |
| Bearing | China Make/NSK/SKF |
| Seals | PTFE Packing Seals/Mechanical Seals |
