Draiange Pump
Diesel Engine Water Pump DP series (Low Pressure)
- Flow: 20-200m3/h
- Delivery Head: 15-30m
- Outlet Dia.: 50-150mm
- Manual start / Electric start
- Product description: drainage pump, diesel water pump, fire pump, irrigation pump
The DP series Portable Diesel Engine Driven Water Pump is widely used for irrigation, drainage, fire fighting applications, gardening, fish farming, wilde field water in-taking and transferring, etc.
Main Performance Data
Flow: 20 - 200 m3/h
Delivery Head: 15-30m
Outlet Dia.: 50-150mm
Suction: ≤ 7m
Speed: 3600rpm
Start: Manual/Electric
Model Instruction
E.G.: DP50
DP: Diesel Engine Driven Water Pump
50:Outlet diameter is 50mm
Applications
Irrigation, Drainage, Wild Field Water Intaking, Farming & Gardening,
Residential and Ware House fire fighting system,

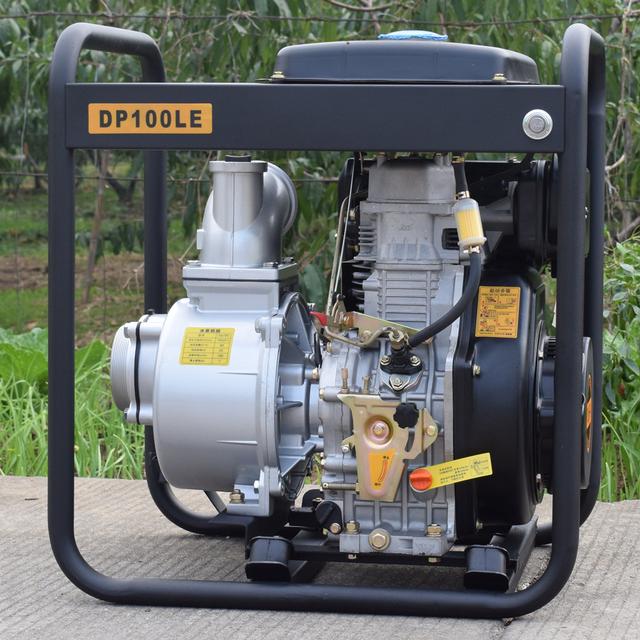

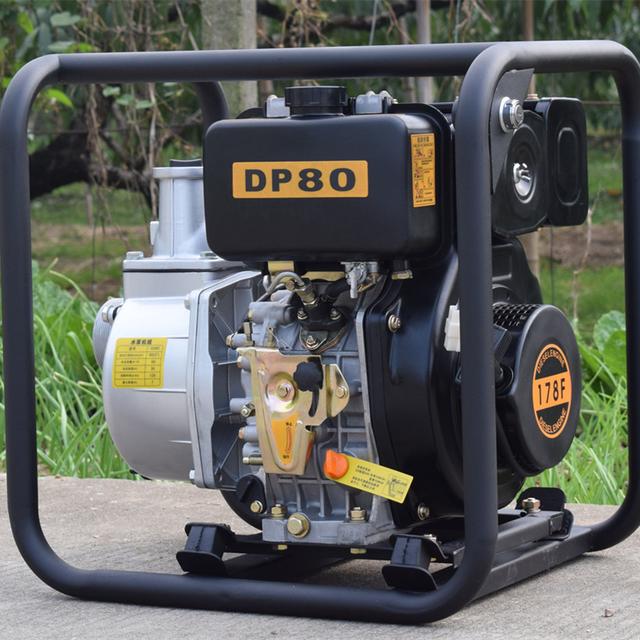

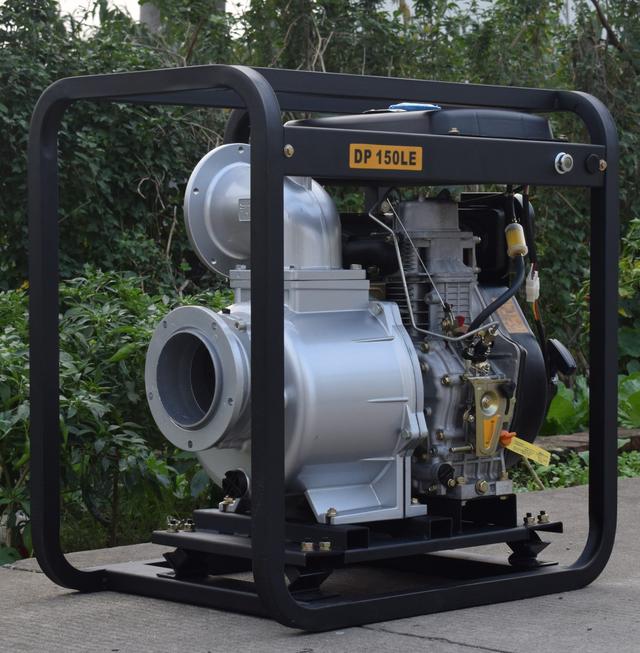

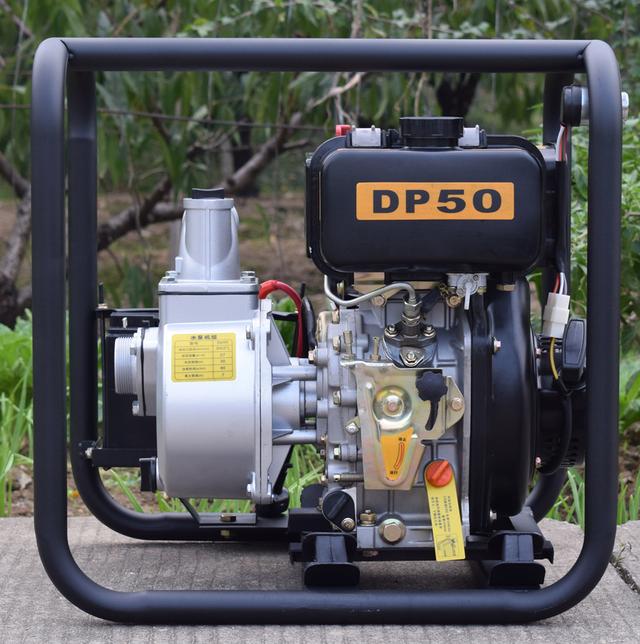

| Model | DP50 | DP80 | DP100 | DP150 |
| Outlet Dia. (mm) | 50 | 80 | 100 | 150 |
| Engine Model | 173F | 178F | 186F | 192F |
| Speed (rpm) | 3600 | 3600 | 3600 | 3600 |
| Flow (m3/h) | 32 | 55 | 100 | 200 |
| Head (m) | 29 | 26 | 31 | 15 |
| Suction (m) | 7 | 7 | 7 | 7 |
| Fuel Tank (L) |
2.5 |
3.5 | 5.5 | 15 |
| Weight (kg) | 39 | 21 | 78 | 130 |
| Dimension(mm) | 510X430X540 | 580X470X570 | 660X490X625 | 805X590X815 |
| Start(Manual/Electric) |
Manual/Electric |
Manual/Electric |
Manual/Electric |
Electric |
