Draiange Pump

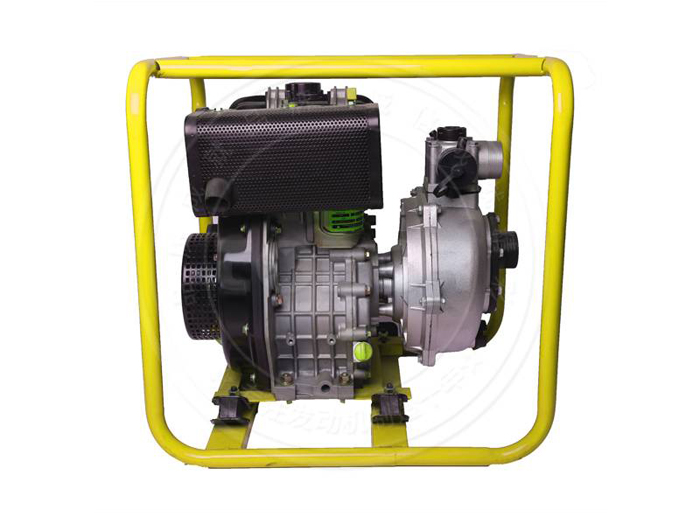

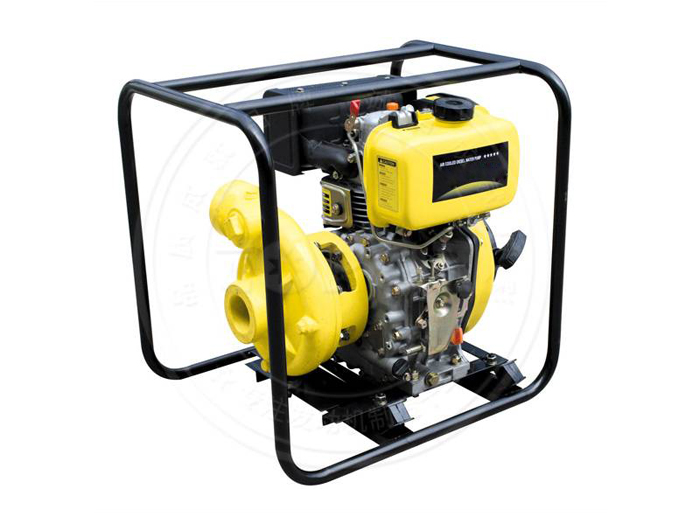

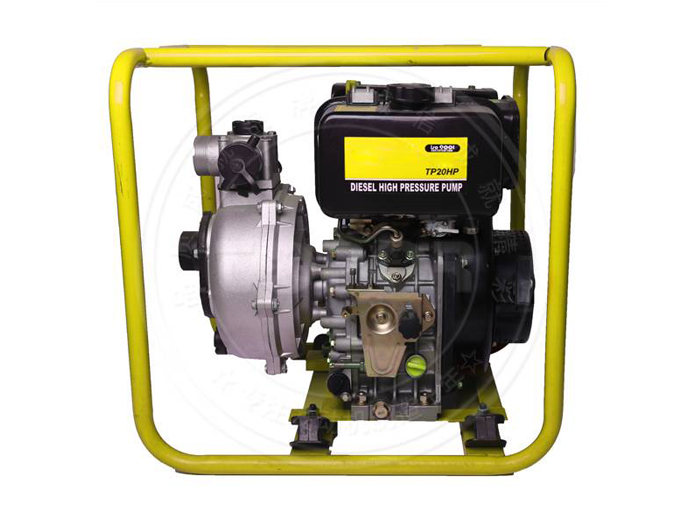

Diesel Engine Water Pump HP series (High Pressure)
- Flow: 20-90m3/h
- Delivery Head: 50-80m
- Outlet Dia.: 50-100mm
- Manual start / Electric start
- Product description: drainage pump, diesel water pump, fire pump, irrigation pump
The HP series Portable Diesel Engine Driven Water Pump is widely used for irrigation, drainage, fire fighting applications, gardening, fish farming, wilde field water in-taking and transferring, etc.
Main Performance Data
Flow: 20 - 90 m3/h
Delivery Head: 50-80m
Outlet Dia.: 50-100mm
Suction: ≤ 7m
Speed: 3600rpm
Start: Manual/Electric
Model Instruction
E.G.: HP20
HP: Diesel Engine Driven Water Pump (High Pressure)
20:Outlet diameter is 2 inch
Applications
Irrigation, Drainage, Wild Field Water Intaking, Farming & Gardening,
Residential and Ware House fire fighting system,
| Model | HP15 | HP20 | HP30 | HP40 |
| Outlet Dia. (mm) | 38 | 50 | 80 | 100 |
| Engine Model | 178F | 178F | 186F | 188F |
| Speed (rpm) | 3600 | 3600 | 3600 | 3600 |
| Flow (m3/h) | 20 | 30 | 40 | 90 |
| Head (m) | 70 | 65 | 80 | 50 |
| Suction (m) | 7 | 7 | 7 | 7 |
| Fuel Tank (L) | 3.5 |
3.5 |
3.5 | 5.5 |
| Weight (kg) | 50 | 52 | 68 | 80 |
| Dimension(mm) | 580X470X570 | 580X470X575 | 660X490X625 | 645X490X655 |
| Start(Manual/Electric) |
Manual/Electric |
Manual/Electric |
Manual/Electric |
Manual/Electric |
