Vertical Pump

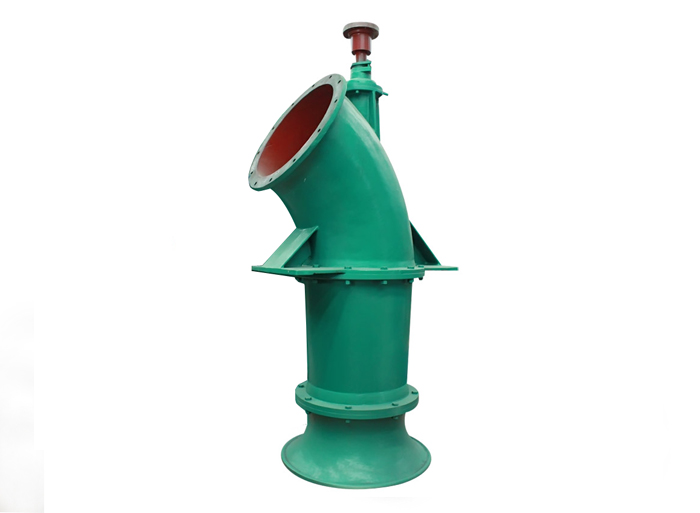

Vertical axial flow pump ZLB series

Flow: 450- 33,500 m3/h
Delivery Head: 2 - 8m
Outlet Dia.: 350 - 1,600mm
Liquid Temp.: 0℃- 80℃
Product description: vertical pump, axial flow pump, propeller pump, big flow pump
INQUIRY

ZLB series is vertical axial flow pump designed for water supply and drainage applications in industrial，municipal and agricultural irrigation projects including metallurgy, mining, chemical, power plants and water level regulation in shipyard docks etc.

Main Performance Data

Flow: 450 - 33,500 m3/h

Delivery Head: 2 - 8m

Outlet Dia.: 350 - 1600mm

Working Pressure: ≤ 0.15Mpa

Solid Particle: ≤ 80mg/L

Liquid Temp.: 0℃- 60℃

Model Instruction
E.G:350ZLB-70A
350: Outlet diameter
ZLB: Axial flow pump
70: 1/10 of the pump specific speed
A(B,C...): Impeller size

Applications
Industrial water supply & discharge,
Irrigation, Emergency drainage,
Rain water disposal, raw water transferring,
Sea water intaking & transferring,
Power station water circulation,
Civil water supply & treatment,
Fishing farm, salt factory, shipyard & dam.

Main Parts Configuration
The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:

Parts Name	For Clean Water	For Sewage	For Corrosive Liquid
Pump Case	Cast Iron HT250	Ductile Iron/Cast Steel	S.S304
Impeller	Cast Iron HT250	Ductile Iron/Cast Steel	S.S304
Shaft	Carbon Steel 45#	S.S420(2Cr13)	S.S304
Shaft Sleeve	Carbon Steel 45#	S.S304	S.S304
Bearing	China Make/NSK/SKF	China Make/NSK/SKF	China Make/NSK/SKF
Guide Bearing	Rubber	Rubber	Thordon
Seals	PTFE Packing Seals	PTFE Packing Seals	PTFE Packing Seals
