Vertical Pump

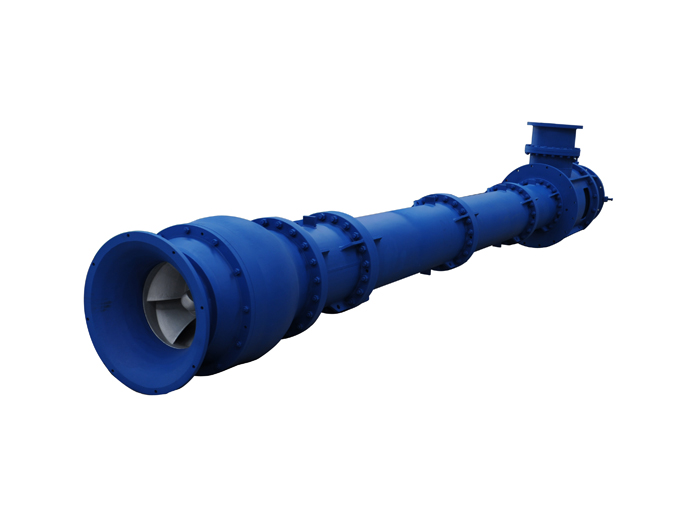

Vertical turbine pump LC/VTC/VTP series

Flow: 150- 19,000 m3/h
Delivery Head: 6 - 260m
Outlet Dia.: 150 - 1,400mm
Liquid Temp.: 0℃- 80℃
Product description: vertical turbine pump, vertical line shaft pump, vertical propeller pump, vertical dewatering pump
INQUIRY

The LC/VTC/VTP series vertical installed turbine pump is a vertical line shaft centrifugal pump, which adopt the WILO, CNP hydraulic model. It have the features of wide range, stable performance, easy maintenance and long service life.

The pump could be design with single installation base or dual base separately, and its discharge could be above the base or below the base according to the site conditions.The impeller parts is submerged into water which will keep the pump impeller full vacuum and no need a pouring water before starting.

Main Performance Data

Flow: 150 - 19,000 m3/h

Delivery Head: 6 - 260m

Outlet Dia.: 150 - 1400mm

Working Pressure: ≤ 4Mpa

Solid Particle: ≤ 80mg/L

Liquid Temp.: 0℃ - 80℃

Model Instruction
E.G.: 400LC2-50A
400: Outlet diameter is 400mm
LC: Vertical Turbine Pump
2: Number of stage is 2
50: Rate delivery head of the pump is 50m
A(B,C....): Impeller code

E.G.: 400LC25X2
400: Outlet diameter is 400mm
LC: Vertical Turbine Pump
25: Rate delivery head of 1 stage is 25m
2: Number of stage is 2

Applications

Industrial water supply and discharge,

Irrigation & Drainage,flood disposal,

Oil, gas & petrol liquid processing,

Hot water & raw water transferring,

Chemical & Sea water transferring,

Power station water circulation,

Factory & residential fire fighting,

Mining water supply & drainage,

Civil water supply & treatment

Main Parts Configuration
The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:

Parts Name	Clean Water	Fire Water	Corrosive Liquid	Waste Water
Pump Body	Cast Iron	Ductile Iron	S.S304/S.S316/Duplex S.S2205	Ductile Iron/Cast Steel
Shaft	45#/ S.S420	S.S420/42CrNi2Mo	S.S304/S.S316/S.S17-4PH	S.S420/42CrNi2Mo
Shaft Sleeve	Carbon Steel	S.S304	S.S304/S.S316/Duplex S.S2205	S.S420/42CrNi2Mo
Impeller	Cast Iron	Bronze/S.S304	S.S304/S.S316/Duplex S.S2205	Ductile Iron/Cast Steel
Wearing Ring	Cast Iron	Bronze/S.S304	S.S304/S.S316/Duplex S.S2205	Ductile Iron/Cast Steel
Bearing	China Make/NSK/SKF11
Seals	Mechanical Seals/PTFE Packing Seals
