End Suction Pump

End suction pump ZA/ZE series

Flow: 9 - 2,390 m3/h
Delivery Head: 5 - 205m
Outlet Dia.: 25 - 400mm
Liquid Temp.: 0℃-120℃
Product description: End suction pump, back pull out pump, processing pump, over hang pump, circulation pump, sea water pump, stainless steel pump
INQUIRY

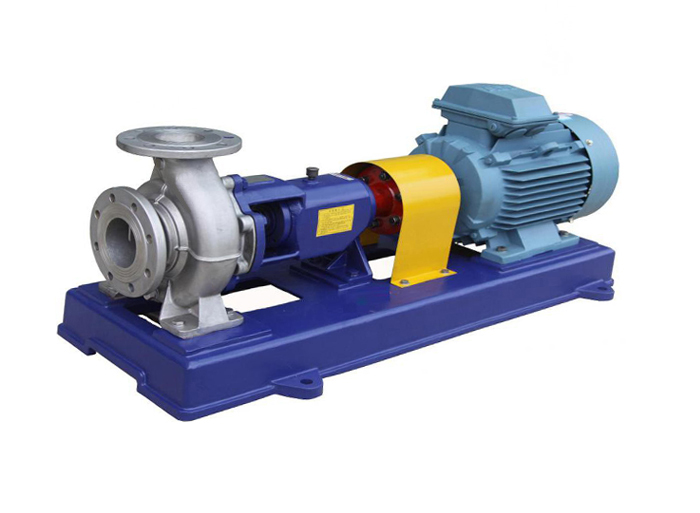

The ZA/ZE series petrochemical process centrifugal pump is designed comply with API610 standard, it could be used to transfer clean water, hot liquid, chemical liquid, etc. The pump is constructed with single impeller, horizontal installed, radial split volute casing with foot support and single entry impeller, end suction, vertical discharge. This series pump is widely used in refineries, chemical industry, sea water desalination plants and also heating & air conditioning, etc.

Main Performance Data
Flow: 9 - 2390 m3/h

Delivery Head: 5 - 205m

Outlet Dia.: 25 - 400mm

Working Pressure: ≤ 2.5Mpa

Solid Particle: ≤ 80mg/L

Liquid Temp.: 0℃ - 150℃

Model Instruction
E.G.: ZA80-160A
ZA: Single stage processing pump (Over-Hang)
ZE: Single stage processing pump (Central-Support)
80: Outlet diameter is 80mm
160: Rate impeller diameter is 160mm
A(B,C....): Impeller code

Applications

Refineries, Petrochemical industry, Coal processing,

Chemical industry, Fibre processing industry, Paper & pulp industry
Sugar industry, Civil waterworks, Sea water desalination plants,
Heading & Air conditioning, Enviromental protection engineering.

Main Parts Configuration

The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:

Parts Name	Clean Water	Hot Water	Corrosive Liquid	Waste Water
Pump Body	Cast Iron	Cast Steel/S.S304	S.S304/S.S316	Ductile Iron/Cast Steel
Shaft	Carbon Steel	S.S420/42CrNi2Mo	S.S304/S.S316	S.S420/42CrNi2Mo
Shaft Sleeve	Carbon Steel	S.S304	S.S304/S.S316	S.S420/42CrNi2Mo
Impeller	Cast Iron	Cast Steel/S.S304	S.S304/S.S316	Ductile Iron/Cast Steel
Wearing Ring	Cast Iron	Cast Steel/S.S304	S.S304/S.S316	Ductile Iron/Cast Steel
Bearing	China Make/NSK/SKF11
Seals	Mechanical Seals/PTFE Packing Seals
