End Suction Pump

  • End Suction Pump IS series (ISO2858)
End Suction Pump IS series (ISO2858)

End Suction Pump IS series (ISO2858)

  • Flow: 6 - 480 m3/h
  • Head: 5 - 125m
  • Outlet Dia.: 25-350mm
  • Liquid Temp.: 0℃- 80℃
  • Product description: End suction pump
  • INQUIRY

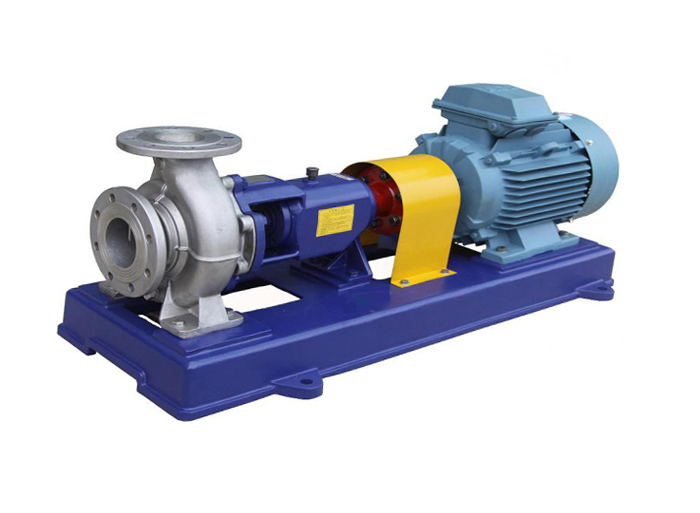

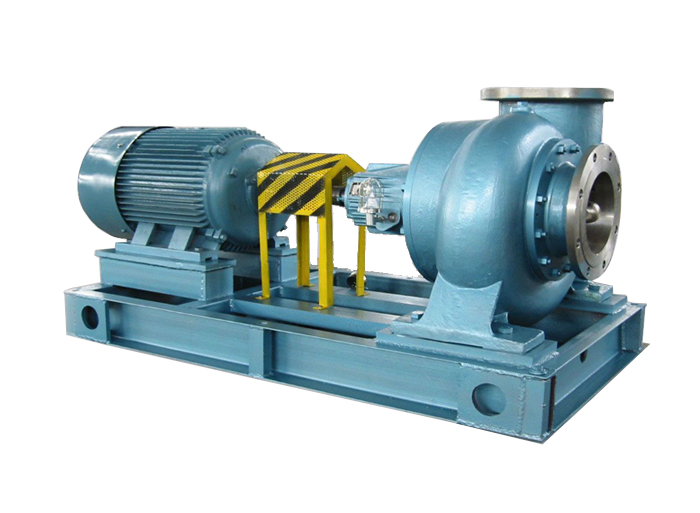

The IS series single stage end suction centrifugal pump is could be used to transfer clean liquid, sewage water, drink and wine, chemical liquid, hot liquid by selecting different flow passage parts. The pump is constructed with single impeller, horizontal installed, radial split volute casing with foot support and single entry impeller, end suction, vertical discharge.


Main Performance Data
Flow: 6 - 480 m3/h
Delivery Head: 5 - 125m
Outlet Dia.: 32 - 350mm
Working Pressure: ≤ 1.5Mpa
Solid Particle: ≤ 80mg/L
Liquid Temp.: 0℃ - 80℃

Model Instruction
E.G.: IS/IR/IY100-80-160A
IS: Single stage end suction pump (for clean water)
IR: Single stage end suction pump (for hot water)
IY: Single stage end suction pump (for oil liquid)
100: Inlet diameter is 100mm
80: Outlet diameter is 80mm
160: Rate impeller diameter is 160mm
A(B,C....):  Impeller code

Applications
Industrial water supply and discharge,
Food, wine, drink, drug industry,
Clean & Hot water transferring,
Chemical liquid transferring,
Sea water desalination & transferring,
Factory & residential drink water supply,
Fibre processing industry, Paper & pulp industry
Sugar industry, Heading & Air conditioning,
Enviromental protection engineering.

Main Parts Configuration
The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:
Parts Name Clean Water Sewage Water Hot Water Oil LIquid
Pump Body Cast Iron Ductile Iron Cast Steel/S.S304 S.S304
Shaft Carbon Steel 40Cr S.S420/S.S304 S.S304
Shaft Sleeve Carbon Steel 40Cr S.S420/S.S304 S.S304
Impeller Cast Iron Ductile Iron Cast Steel/S.S304 S.S304
Wearing Ring Cast Iron Ductile Iron Cast Steel/S.S304 S.S304
Bearing China Make/NSK/SKF
Seals PTFE Packing Seals / Mechanical Seals
